4m x 2m LED Screen
An 8 m² wall that carries a crowd — the popular size for football viewing, festivals, stages and advertising. Here is the resolution by pitch, the cabinet layout, and a factory-direct quote.
From US$100 — final price depends on your size, pixel pitch and finish. Contact us for an exact quote.

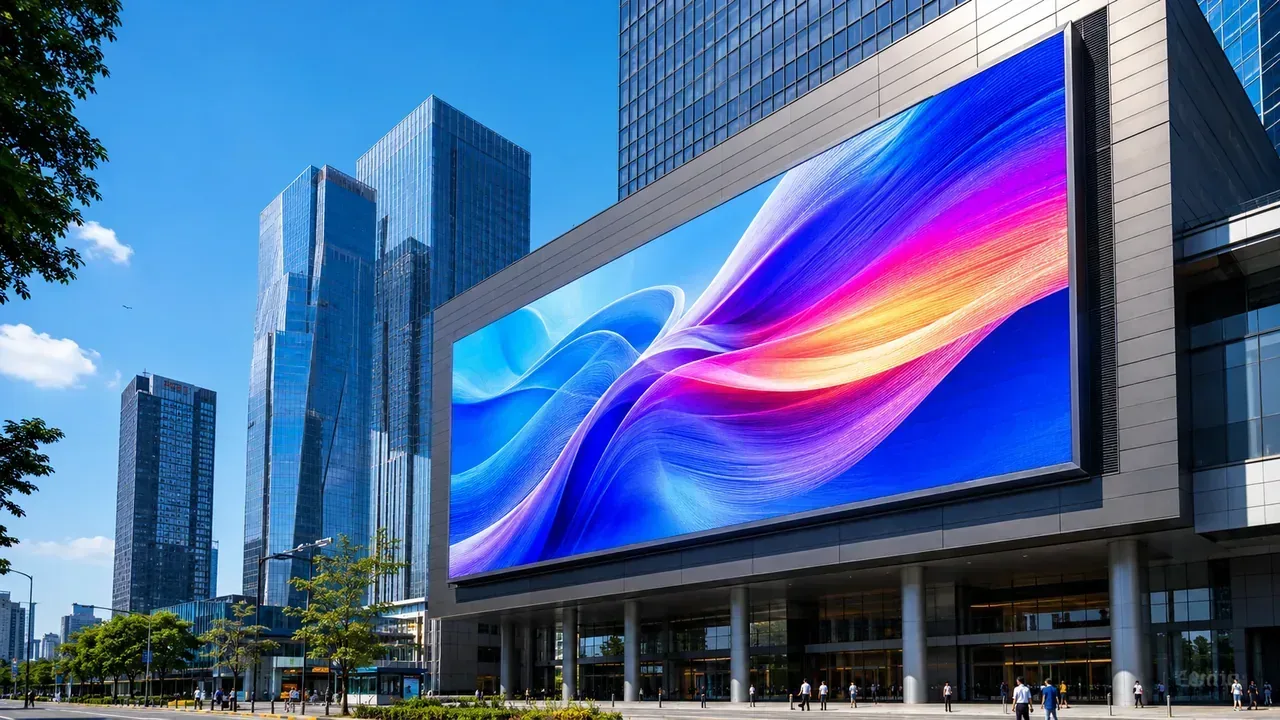

A 4m × 2m LED screen is an 8 m² landscape wall — the go-to size for football viewing, festivals, stages and large outdoor advertising. Big enough to hold a crowd of 80–200 people, yet manageable without the heavy structure a 6 m wall demands. At P3.91 outdoor you get a 4,500-nit IP65 build from around $6,400 factory-direct; an indoor P2.5 for stages starts from $5,200.
This page gives the specifics: the resolution you get at each pixel pitch, how it is built from cabinets, indoor vs outdoor, and a real event case. EKINTRY builds it to size and quotes factory-direct.
Who custom screens are for
- Fan zones, festivals and outdoor sports viewing.
- Stages, concerts and large events.
- Outdoor advertising and façade displays.
- Halls, auditoriums and houses of worship.
Resolution at each pixel pitch
Pixel pitch sets the resolution of a 4000 × 2000 mm wall — finer pitch means more pixels, sharper close-up, higher cost. Pick the pitch from how close the nearest viewers stand:
- P2.6 — ~1538 × 769 px; crisp for closer indoor viewing.
- P3.9 — ~1025 × 512 px; the balanced outdoor-event choice.
- P4.8 — ~833 × 417 px; economical for larger viewing areas.
- P10 — 400 × 200 px; long-distance outdoor advertising.
How it is built (cabinet layout)
A 4m × 2m wall tiles cleanly from standard cabinets: with 500 × 500 mm cabinets it is an 8-wide × 4-high grid (32 cabinets); with 1000 × 500 mm cabinets, a 4 × 4 grid. Landing on a whole-cabinet grid keeps build and shipping efficient and the wall perfectly rectangular.
Indoor or outdoor 4m × 2m
Indoors the wall can use a finer pitch and standard brightness. Outdoors — the common use for this size — it needs weather-resistant, outdoor-rated cabinets at roughly 4,000–6,000 nits to stay vivid in daylight, plus a high refresh (3,840 Hz) so it looks clean on camera and live streams.
Cabinet options: RV Series vs XS Series
If a 4m × 2m wall is transported to events, the cabinet series matters. The RV Series is cost-effective with more internal cabling; the XS Series uses an integrated power box and connector-pin power and signal for a cleaner, more stable build that sets up faster and is easier to maintain. For frequent transport choose XS; for budget or semi-fixed installs, RV works well.
Installation and transport
For events a 4m × 2m screen stands freestanding on a ground-support stand or truss — no rigging — and packs into wheeled flight cases. Beside a bar, stage or trailer, freestanding next to the unit is safer and more flexible than mounting onto it.
| Area / format | 8 m², landscape (2:1) |
|---|---|
| Resolution | P3.9 ~1025×512 · P2.6 ~1538×769 px |
| Cabinets | ≈32 at 500 mm (8×4 grid) |
| Audience | ~80–200 people |
| Outdoor | ~4,000–6,000 nits, weather-resistant |
| Pixel pitch | Resolution (4×2 m) | Best for |
|---|---|---|
| P2.6 | ~1538 × 769 px | Closer indoor viewing, fine detail |
| P3.9 | ~1025 × 512 px | Outdoor events & sport — balanced |
| P4.8 | ~833 × 417 px | Larger outdoor viewing areas |
| P10 | 400 × 200 px | Long-distance advertising |
| Screen size | Typical audience | Notes |
|---|---|---|
| 2m × 2m | 20–50 people | Entry-level / budget |
| 3m × 2m | 50–100 people | Mobile events, sport |
| 4m × 2m | 80–200 people | Football, festivals — strong impact |
| 6m × 3m | 200+ people | Large events, needs more structure |
| Feature | RV Series | XS Series |
|---|---|---|
| Cost | More cost-effective | Higher-end build |
| Cabling | More internal cables | Integrated power box, connector-pin power & signal |
| Maintenance | Takes more time | Easier, more stable |
| Best for | Budget / semi-fixed | Frequent transport & rebuild |
Real case: 4m × 2m for outdoor football viewing
| Client type | Mobile events / catering business |
|---|---|
| Country | United Kingdom |
| Application | Football viewing, festivals, weddings beside an event trailer |
| Considered | 2m × 1.5m (too small for the crowd) |
| Pixel pitch | P3.9 outdoor |
| Installation | Freestanding stand beside the trailer, flight-case transport |
Why this solution worked: A 2m × 1.5m screen left guests several metres back struggling to see the match. Stepping up to 4m × 2m at P3.9 — about 1025 × 512 px and ~5,000 nits — gave a strong, daylight-readable picture for 80–200 guests, while staying portable on a freestanding stand.
Send us your project details
To recommend the right screen size, pixel pitch, cabinet type and shipping, please send us:
- Indoor or outdoor, and the location.
- Pixel pitch, or the closest viewing distance.
- Event type and whether it must be portable.
- RV or XS cabinet preference (transport frequency).
- Budget range and destination country.
Frequently Asked Questions
How many people does a 4m x 2m LED screen suit?
Roughly 80–200 people — large enough for football viewing and festivals where the crowd spreads several metres back. Smaller groups can use 3m × 2m.
What resolution is a 4m x 2m LED screen?
By pitch: P2.6 ≈ 1538×769, P3.9 ≈ 1025×512, P4.8 ≈ 833×417, P10 = 400×200. Finer pitch = more pixels and a sharper close-up image.
How many cabinets make a 4m x 2m wall?
With 500 mm cabinets it is an 8×4 grid (32 cabinets); with 1000×500 mm cabinets, a 4×4 grid. It tiles to a clean rectangle.
What pixel pitch should a 4m x 2m outdoor screen be?
P3.9 is the balanced outdoor-event choice; P4.8 is more economical for larger areas where people stand further back.
Is a 4m x 2m screen portable for events?
Yes — on a freestanding stand or truss and packed in flight cases it travels in a van. For frequent transport, the XS Series cabinet is easier to handle.
